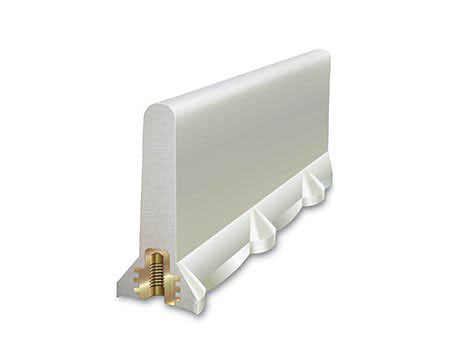

Tatch-A-Cleat ® Model L cleats are ideal for light-duty service in applications such as food processing, industrial conveyors, parts handling and harvesting equipment. Available in five heights from 5/8" to 3".
Model L cleats are made from nitrile, which is a long-life, high-tensile rubber providing superior resistance to the deteriorating effects of hot vegetable or mineral oils. Nitrile also displays excellent resistance to heat, acids, weathering, and aging. This makes the Model L cleat the preferred choice for many food processing and outdoor applications.
The fully rounded top of the Model L cleat minimizes the concerns of bruising or marking of the conveyed product. In addition, the Model L cleat has a smooth exterior, which eliminates crevices for material buildup and speeds cleanup. Model L cleats use pressure cups to draw the cleat down, making it an integral part of the belt.
Flexco Order NumberL2-WS (99515)
Minimum Pulley Diameter2"
Temperature Range-40° F to 240° F
Length24"
Height2"
Fastener Material302 Stainless Fastener
Package Configuration- 10 Cleats Per Carton
- 1/2" Screws
ColorWhite
Cleat TypeMechanical
Rubber Durometer90
Rubber CompoundNitrile
Weight14.5 lbs
1/2" screws are furnished "standard" and can be used on belts up to 5/16" thick.
Inserts are on 2" centers.
For belts 5/16" - 7/16" use a 5/8" screw.
For belts over 7/16" use a 3/4" screw.
