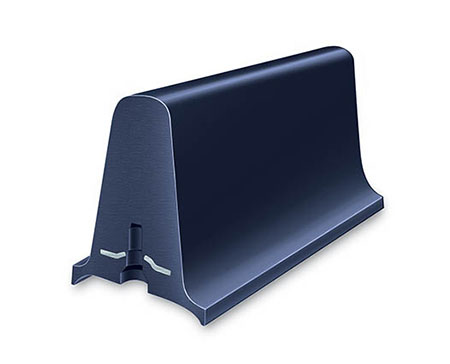

Tatch-A-Cleat ® Model HD is a heavy-duty cleat, engineered to stand up to abrasive, high-impact applications such as mining, agriculture, construction, scrap, trash-burning, and material handling.
Model HD cleats are manufactured from an abrasion-resistant SBR compound for added durability. In addition, the HD displays high tensile strength and flexibility, so it can be used in troughing conveyors or in applications employing horseshoe, chevron, or crescent patterns. Other features of this cleat include a smooth exterior for quick and easy cleanup, and special sealing edges to lock out dirt and moisture.
Model HD is available in the standard 1" height, or 2" for applications requiring greater ability to move materials. In addition, the top edges of the HD2 are rounded to prevent bruising of conveyed materials, such as potatoes.
Flexco Order NumberHD2 (99565)
Minimum Pulley Diameter4"
Temperature Range-40° F to 180° F
Length24"
Height2"
Fastener MaterialPlated Fastener
Package Configuration- Cleats (5)
- Plated 14 x 1 Type AB Fasteners
Cleat TypeMechanical
Rubber Durometer70
Rubber CompoundSBR
Weight9.5 lbs
Model HD Cleats are furnished with Plated 14 X 1 Type AB Fasteners.
Specify 1-1/4" screws for belts over 7/16" thick.
